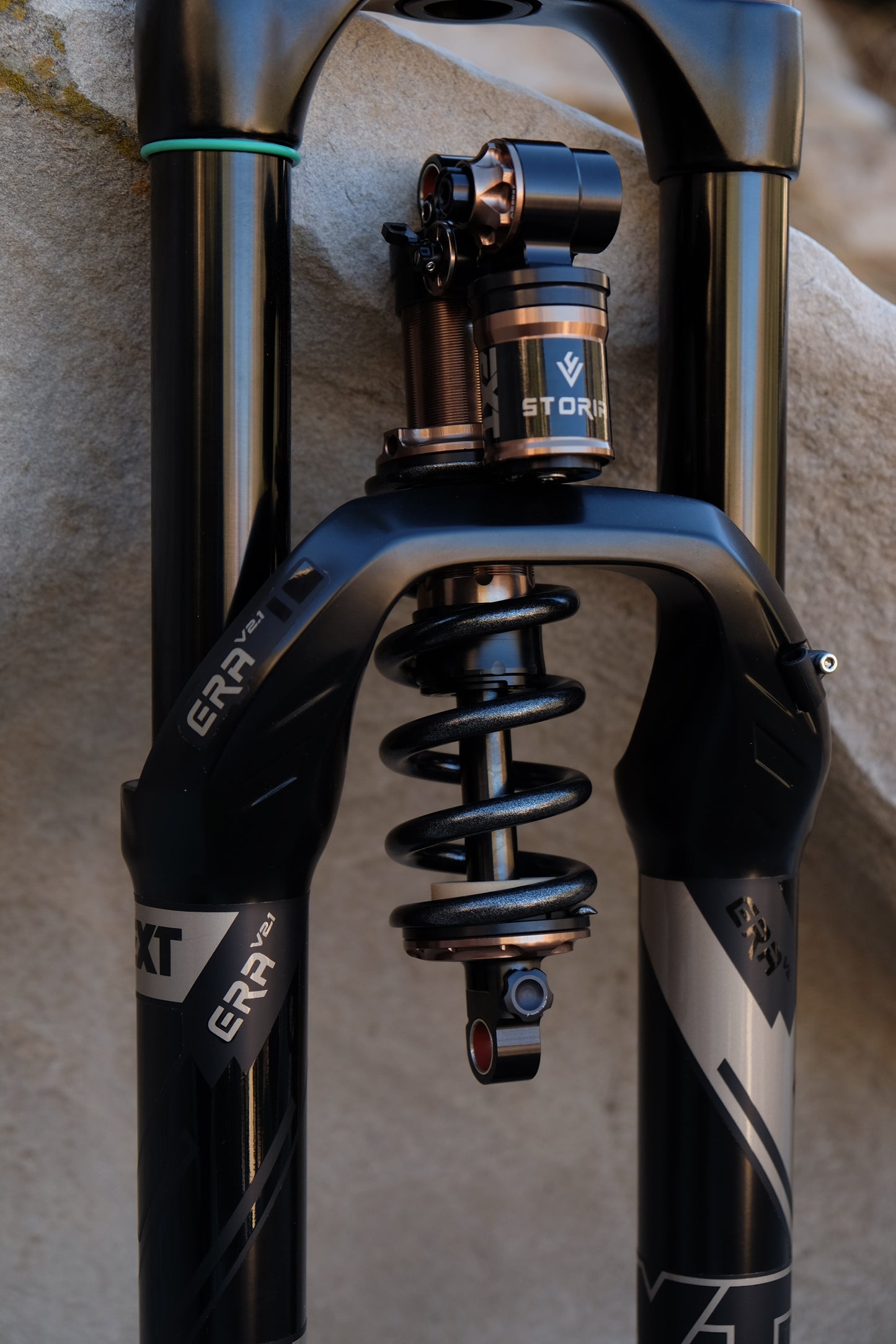

EXT Era V2.1 Storia V4 - 10% OFF Set

EXT Era V2.1 Storia V4 - 10% OFF Set

Regular price $2,448.00 USD
Regular price $2,720.00 USD Sale price $2,448.00 USD
Sale Sold out
Shipping calculated at checkout.

STORIA V4 Key Features:

  • 4 way adjustable (LSC-HSC-LSR-Lok 2.0 proprietary system)
  • Unique patent pending PSR hydraulic top out technology to avoid harsh top-out while improving bike platform stability and predictability
  • Adjustable Hydraulic Bottom-out Circuit (HBC) Technology: our end stroke damping technology that has revolutionized the MTB damper market has been refined even further ensures predictable end-stroke characteristics to allow the user full utilization of  travel of the bike while virtually eliminating harsh rebound effects.
  • Introduction of more commonly found 5mm Allen wrench adjuster for high compression valve vs. the previous 12mm wrench adjuster
  • LOK 2.0: optimized for pedaling but perfectly at home on every trail section due to an integrated threshold by-pass circuit.
  • High turbulence flow valves provide a balanced and controlled damping profile while simultaneously minimizing risk of cavitation
  • Ø14 mm chromoly shaft utilizing diamond like carbon (DLC) coating via physical vapor deposition (PVD) provides state of the art ultra-low friction properties and increased durability from impacts and wear
  • Tapered Spring Thrust Bushings to improve straight alignment in case of spring side-load conditions
  • Large volume reservoir using a bladder design and very low reservoir pressure (55PSI) ensures maximum sensitivity
  • High viscosity index oil provides consistency through even the most tortuous of conditions
  • 30% lighter steel spring, designed from motorsport and tested to perform over 500,000 cycles
  • Designed for Enduro / Trail riding
  • Price is for damper only. Springs are available on the product page and a 2nd spring can be purchased at a discounted rate.



ERA V2.1 FEATURES

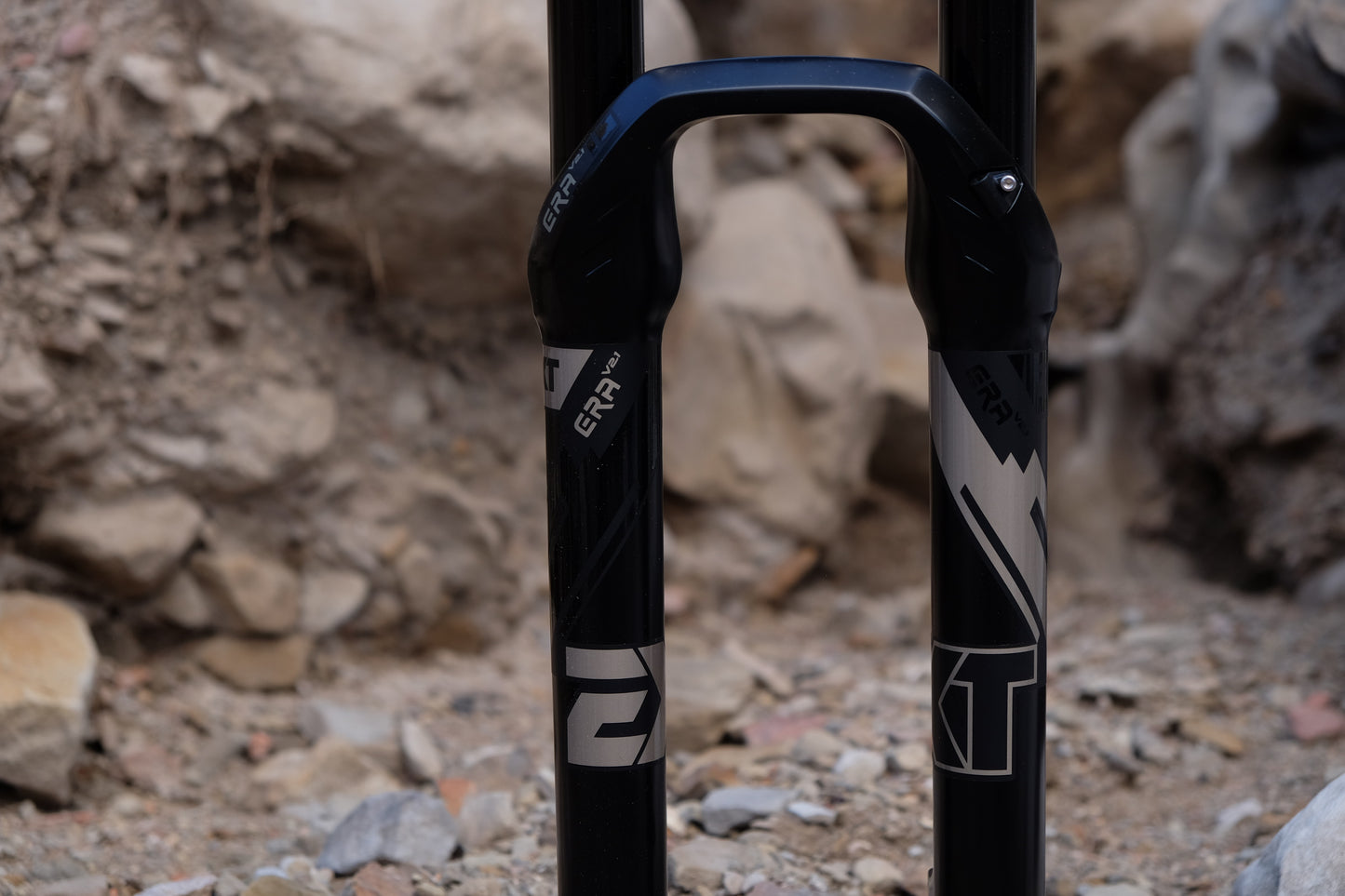

Continuing to refine the already best in class, the ERA V2.1 fork uses our HS3, hybrid air spring. Two positive air chambers work with one, high volume self activating negative air chamber. Combined with a high-volume damper cartridge this system offers incredible tuning capability and sets a new level for support in a suspension fork. The Era V2.1 introduces features and upgrades that aims to improve the experience, safety and performance of its' predecessors.

At its core the Era V2.1 has the same configuration that made Era famous and appreciated: HS3 system, robust anti-creak crown, phenomenal mid stroke support,  excellent stiffness and performance.

The Era V2.1 fork features a magnesium lower design that makes them lighter and load-optimized and it’s made possible by utilizing a specific production process called Thixomolding.

WHAT'S NEW

  • Increase in negative chamber volume of HS3 Spring system for improved small bump and top out characteristics.
  • New DU Bushing Material for improved small bump and reduced dynamic friction.
  • Expanded damper tune options to dial in the perfect ride for every level and type of rider.

Product Features

All Metric Sizes Available (Standard or Trunnion mount)

Eye to Eye Length Stroke
210 or 185 Trunnion 47.5
210 or 185 Trunnion 50
210 or 185 Trunnion 52.5
210 or 185 Trunnion 55
230 or 205 Trunnion 57.5
230 or 205 Trunnion 60
230 or 205 Trunnion 62.5
230 or 205 Trunnion 65

Adding to an already legendary resume the newest iteration of the Storia line of shocks pulls no punches. This shock is designed to further raise the bar on what is possible for performance in MTB damper technology. The overall packaging looks similar to it's predecessor but what lurks beneath the surface is truly revolutionary.

Fitment and Sizing

For installation tutorial videos, please see our page MTB Installation Videos or visit this LINK.

NOTICE: All dampers should be test fit to the frame and cycled though the travel to ensure frame compatibility and clearance. This is especially important when using aftermarket parts that modify stock geometry or linkage characteristics. We are not responsible for damage to frames where the shock fitment was not initially verified.

Bikes with Known Fitment Issues

  • 2020-2023 Specialized Enduro
  • 2021-22 Norco Range
  • 2020 Specialized Stumpjumper (non EVO model)
  • Intense Tazer
  • 2019-2022 Specialized Demo
  • Trek Rail (Will work with e-Storia)
  • Evil Following V3
  • Evil Offering V1
  • Santa Cruz Hightower (All Versions)

PLEASE COMPLETE THE FOLLOWING RIDER INFORMATION:
