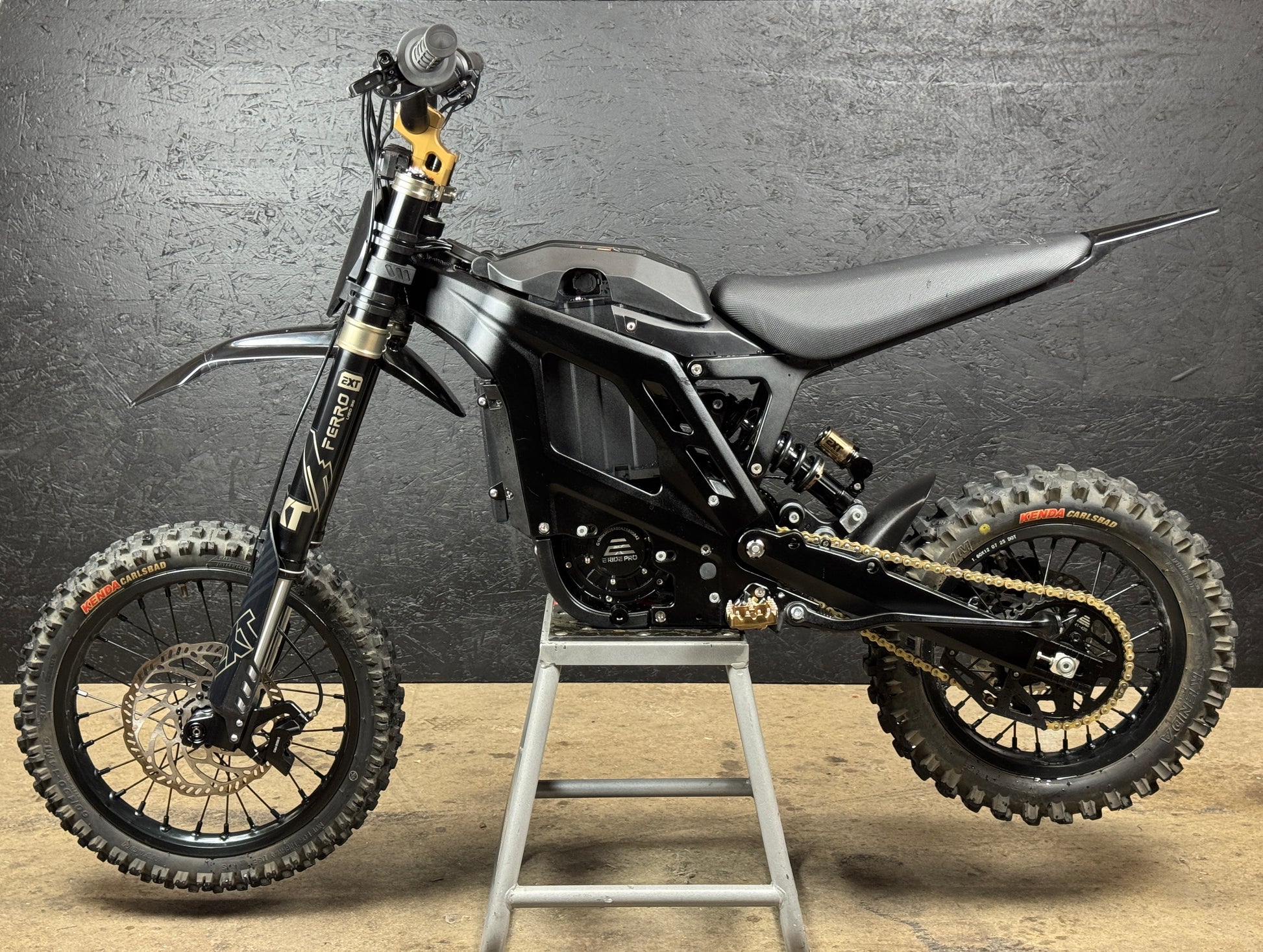

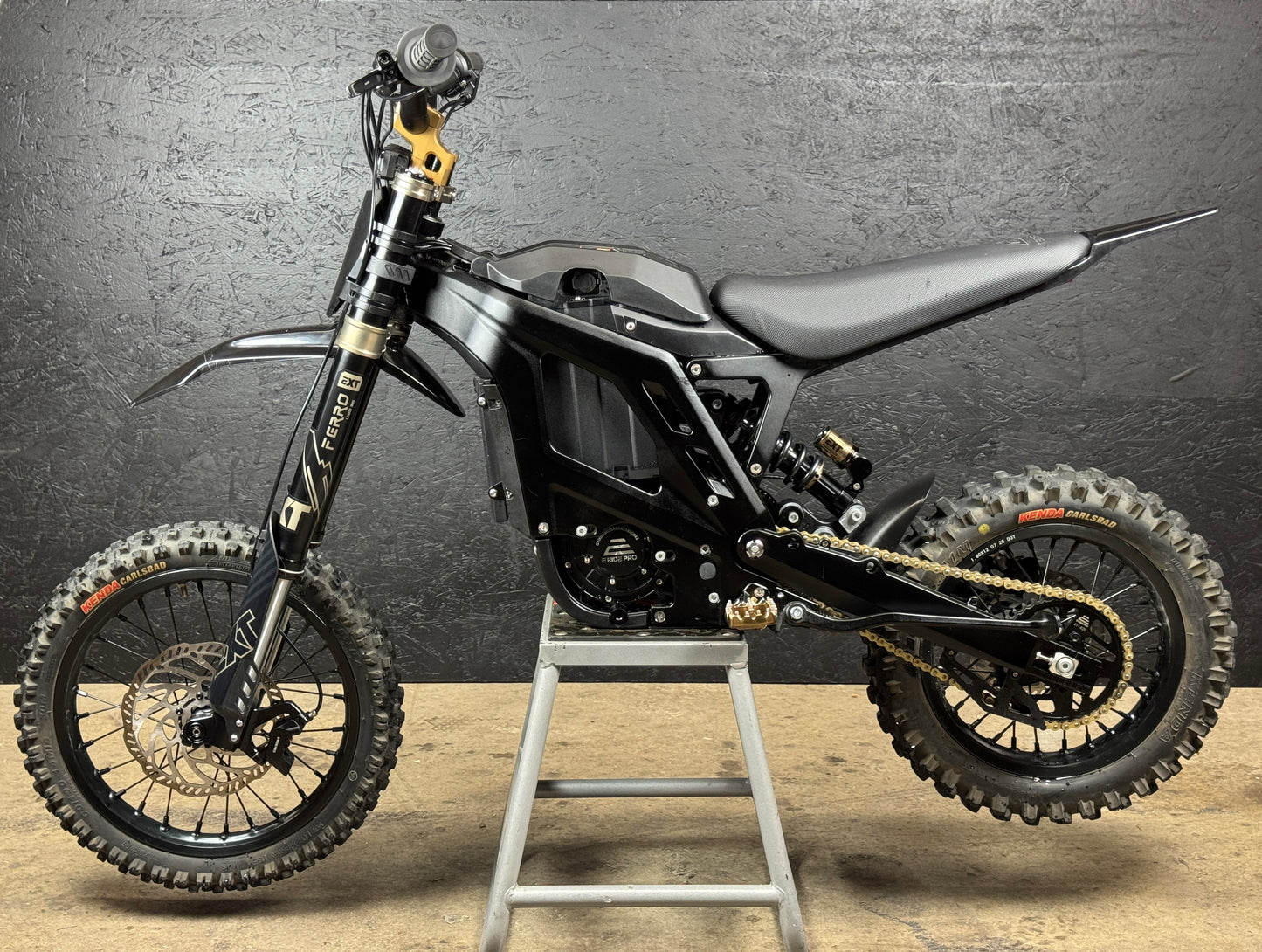

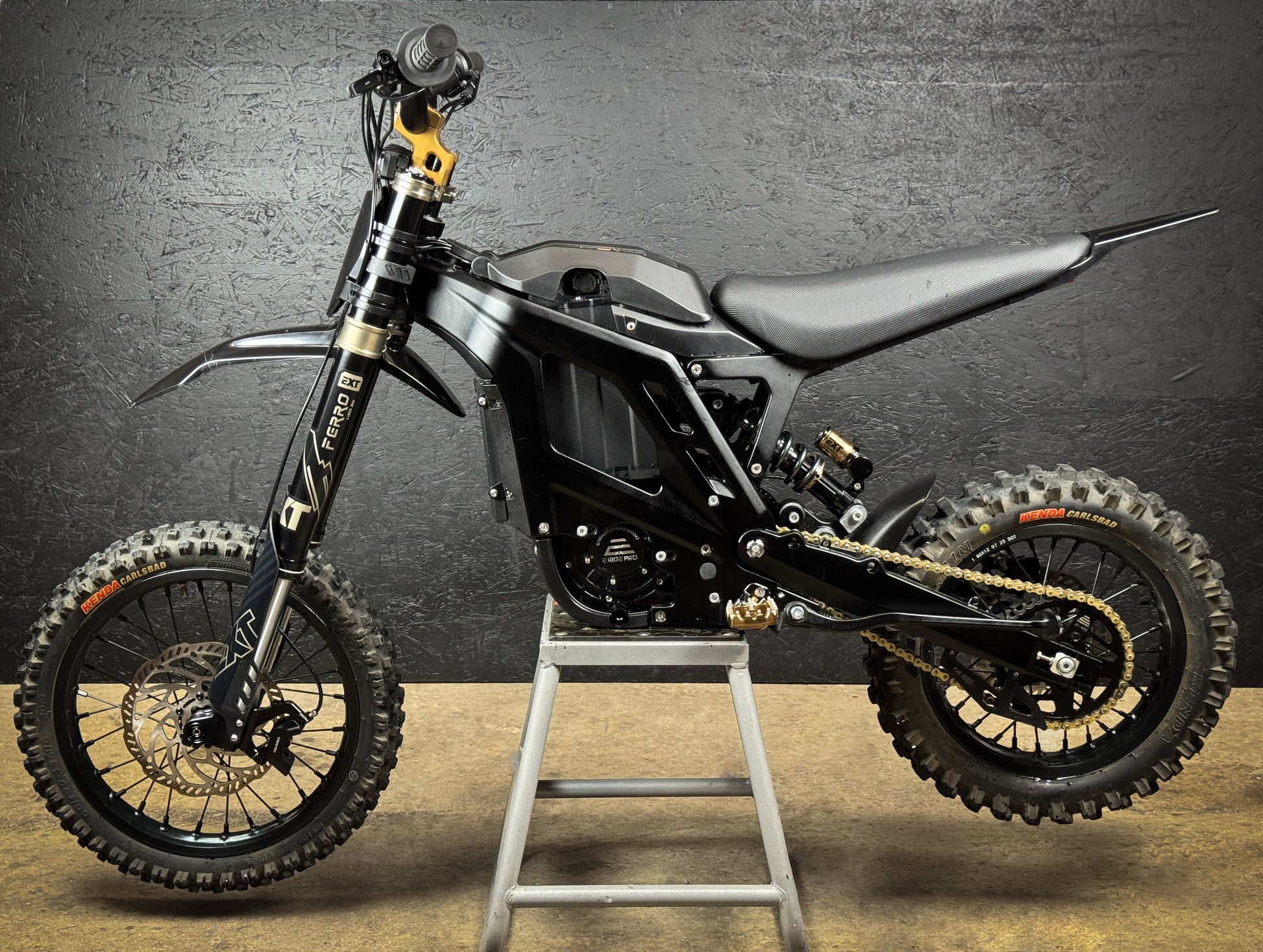

Eride Mini R Suspension Package

NOTICE: This suspension package requires significant modifications to the stock linkage. We will provide you with detailed instructions on how to do this.

Package includes the following:

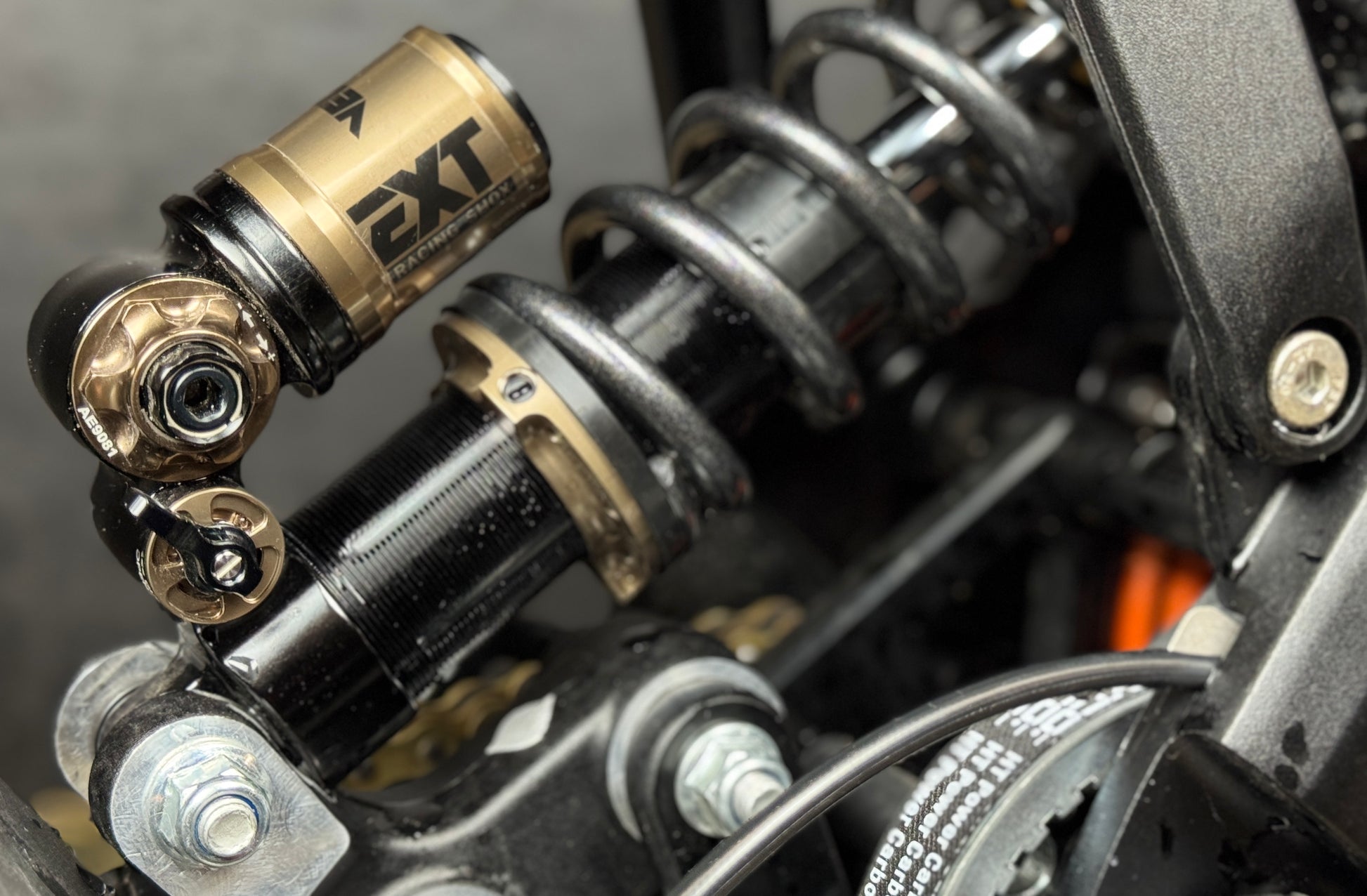

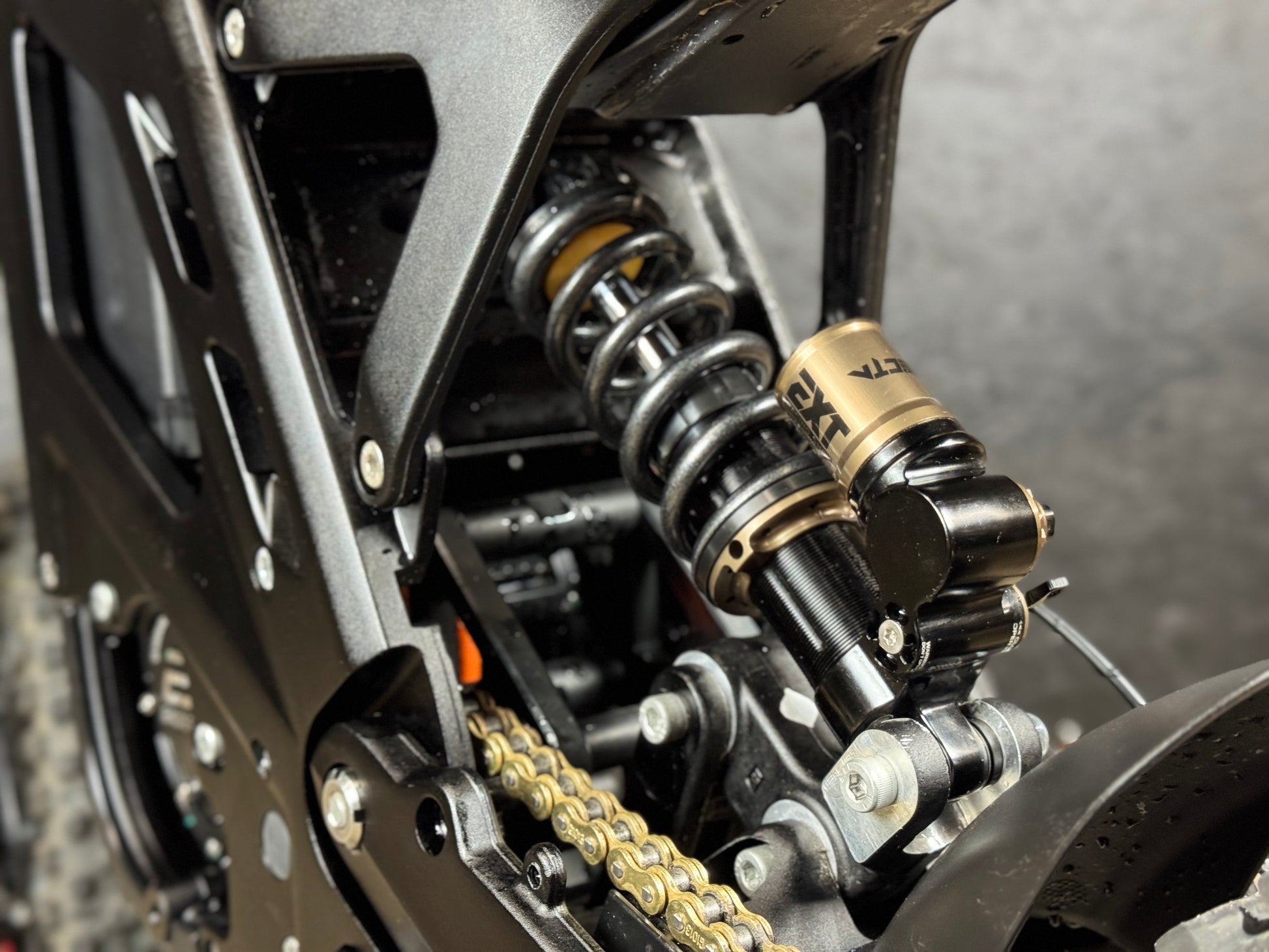

Vecta Damper 230x65mm

• 3 way adjustable: LSC-HSC-LSR
• High flow 29 mm main piston
• 24 mm valve piston
• 14 mm shaft (50% larger than most other coils on market to help deal with large side loading events)
• Engineered rebound circuit to separate bump and rebound oil flow – Ultra low-friction coating
• User adjustable HBC technology
• Very low reservoir pressure for maximum sensitivity  and low cavitation(55 PSI)
• Full custom hydraulic setup that is bike and rider specific for each shock
• Very low hysteresis for high dynamic response
• High turbulent flow for progressive dampening and mid stroke support
• Low friction seal
• Included with 1 light weight spring available in weights from 325lbs to 800lbs
• Comes with specific mounting hardware for easy bolt in installation.

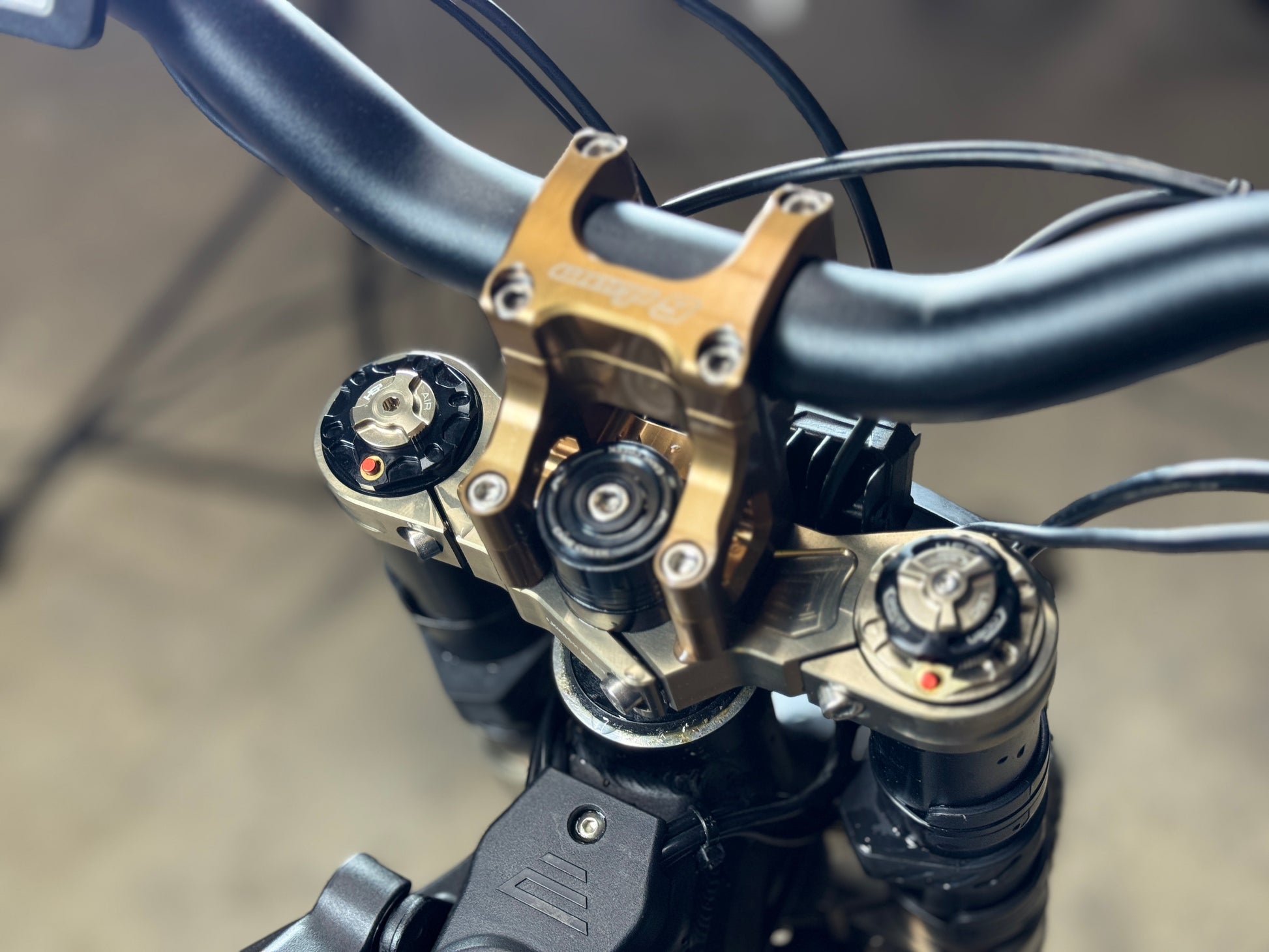

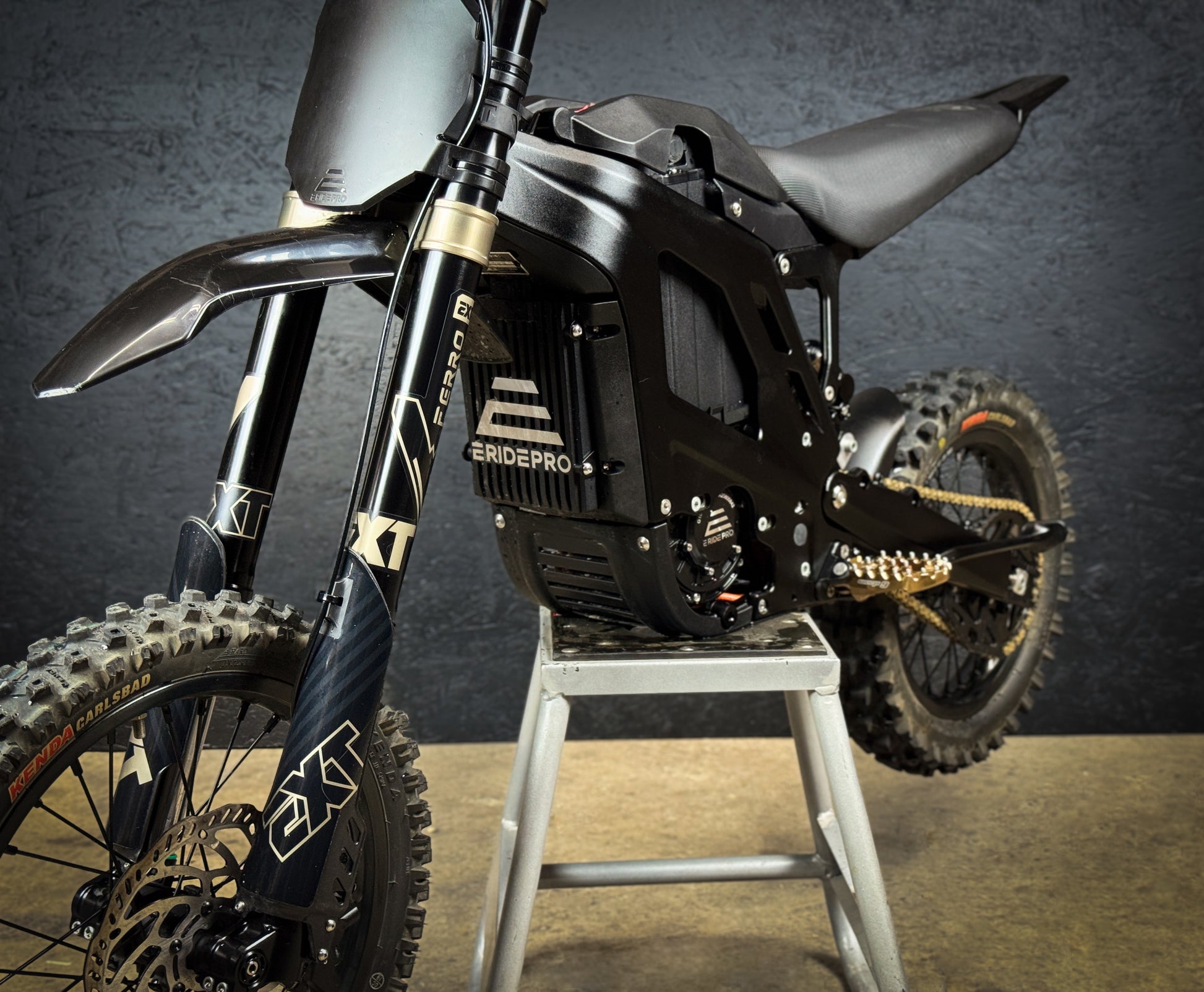

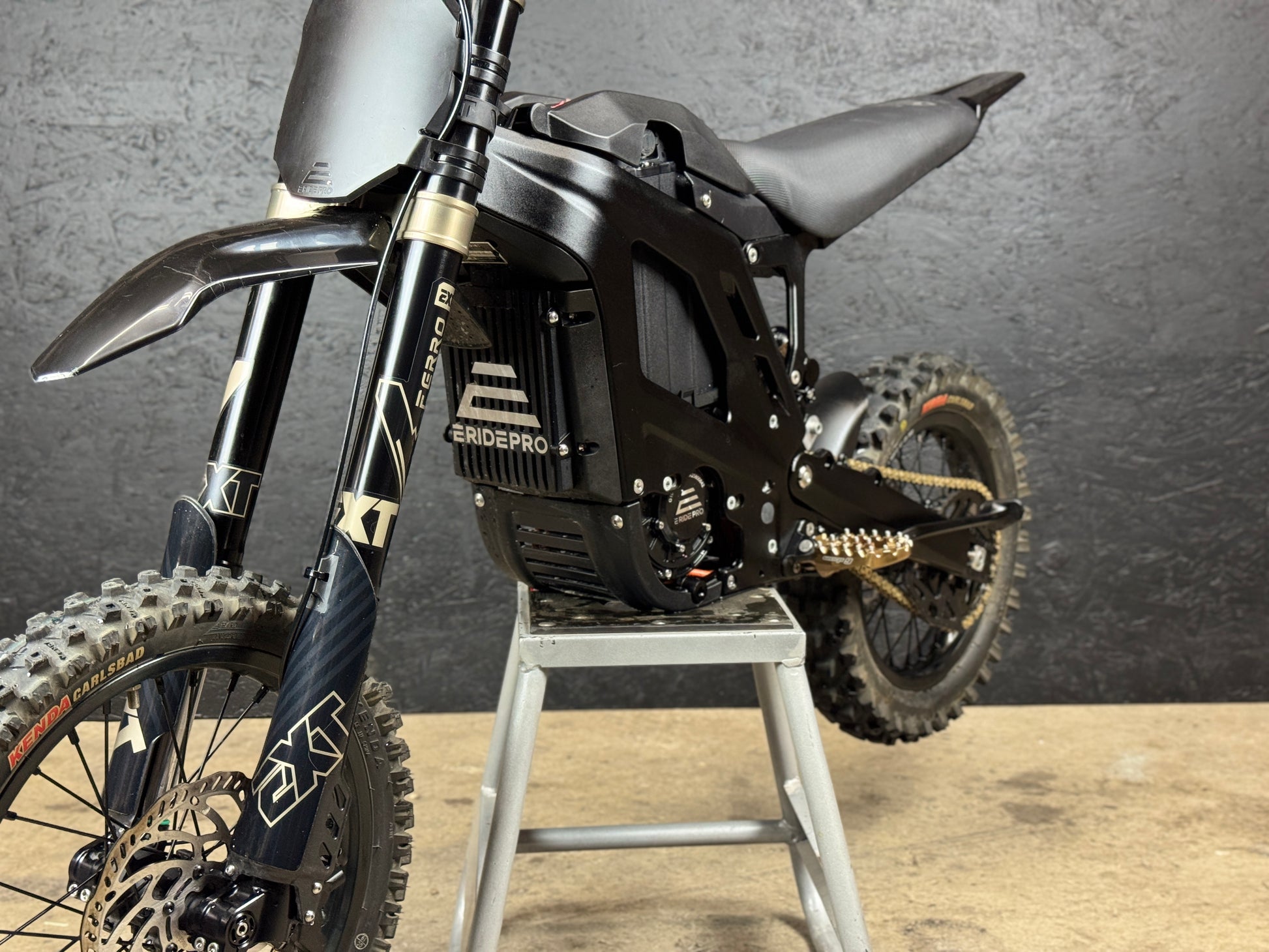

Ferro Mini FEATURES

• Lowered to 180mm optimized for Eride Mini
• Robust dual crown inverted MX design (USD)
• 36mm Ø hard chromed steel stanchions (heat treated 42CrMo4) with Superfinish surface treatment
• HS3 3- twin positive air system ¬+ 1 large negative self-balancing air chamber, allows for an optimum level of support through all the travel
• High flow 3-way cartridge damper system with independent high & low speed compression plus rebound damping adjustment.
• Superfinish inner tube coating
• External pressure air release system on both legs
• Twin hexagonal floating axle, boost compatible ∅20mm
• Air spring and cartridge radial guide system with bespoke aeronautical seals (minimize friction on side loads)
• Large piston design for best damping control and separate IFP/coil energized compression valve
• No cavitation and low hysteresis
• Self-hydraulic cartridge bleeding
• Dedicated Mobile Sliding DU guiding system with super-long static overlap (for maximum guidance and best torsional rigidity). (CGB Continuously Guided Bushing system, increase stiffness)
• 44 mm offset
• 200 mm post mount brake
• Weight 4000gr
• Pressure release one-way valves on both legs
• Compatible with stock fender design
• Boost Hub Spacing for more flexibility with after market wheel sets.

INCLUDES:

• Vecta Rear Damper and Selected Spring
• Ferro Mini EMX With Flat Crown
• Hub Adaptor



Recommended Spring Rates

Rider Weight	Plush	Firm
up to 140	400	450
140 to 160	450	500
160-180	500	550
180-210	550	600
210+	600	650

Ferro Recommended Starting settings

	Plush		Firm
Rider Weight	Main Chamber (+)	Ramp Chamber (++)	Main Chamber (+)	Ramp Chamber (++)
120	70	88	80	110
140	80	100	90	125
160	90	113	105	150
180	100	125	120	170
200	110	138	130	180
220	120	150	145	200
